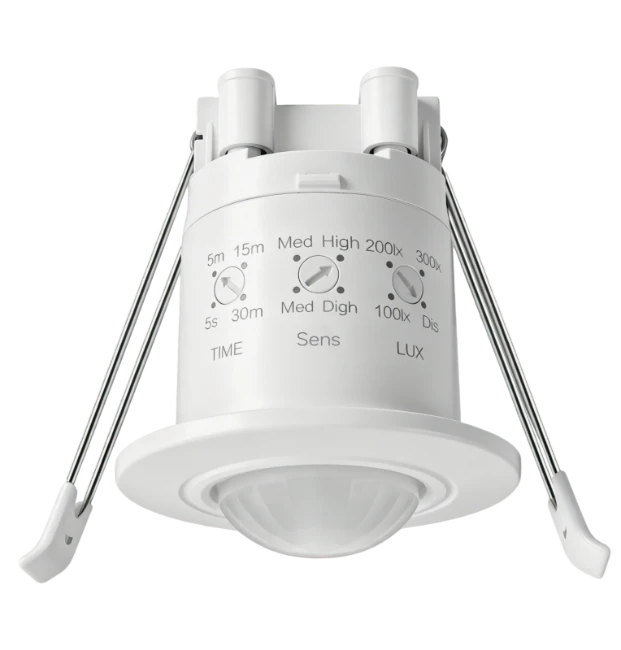

SmartSensor-Relay/Slave-PIR-L-RND

Product Code
822001000800
  • Compact sensor range with Relay (230V) , DALI-2 Broadcast, DALI-2 input and Smart BLE2 versions
  • Adjustable sensitivity or daylight treshhold via rotary switches or remote controller
  • Compatible with the Opple Smart Lighting system (DALI input/BLE2 versions)
  • Surface mounting accessory available

Specifications Packaging Accessoires

Electrical data

Nominal voltage 220|240 V
Voltage type AC

Capabilities

Daylight balance Yes
Sensor technology Passive Infrared (PIR)
Detection angle 360°

Certificates and standards

Degree of protection (IP) IP20
Impact strength IK03
Colour White
Material PC
Mounting method Flush-mounted
Finishing White RAL9003
Diameter 68 mm
Width 68 mm
Height 16.0 mm
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
693720962692985365005CT10.085 x 0.085 x 0.095 m0.1 KG
SmartSensor-Remote-Controller


Accessory Sensors - Remote control for sensor

Product Code
822001002000
SmartSensor-Surface-Module-D68


Accessory Sensors - Sensor surface module - 68mm

Product Code
822001002100
Surface mounted housing
SmartSensor-Surface-Module-D84


Accessory Sensors - Sensor surface module - 84mm

Product Code
822001002200
Surface mounted housing

Downloads

822001000800_ProductSheet_en.pdf
Smart_lighting_SIG_Mesh_manual_EN.pdf
Neutral_gb_822001000800.txt OPPLE_gb_822001000800.txt
