Trunking G2

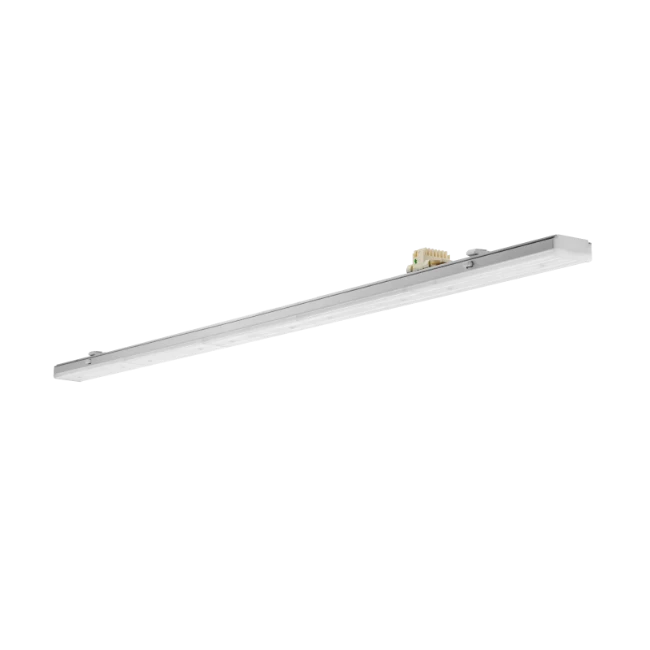

Trunk-P2 Mod L15-35/48W-840-BW-WH-IP54

Product Code
552000032600
  • Trunking system with modular freedom: Free-to-place LED modules and extensive layout accessories
  • High Performance: Powerful output up to 24 690 lm with tailored beam optics
  • Fast Installation: Versatile 1,5m to 4,5m trunks to fit any project size
  • Industrial Grade: Durable IP54 rated options for demanding environments
  • Future-Proof Efficiency: Ultra-high efficacy up to 208 lm/W, with smart savings via DALI-2 dimming and integrated sensors

Specifications Packaging Accessoires

Electrical data

Nominal voltage 220|240 V
Voltage type AC/DC
Power factor 0.9
Max. system power 48 W
Max. inrush current 33 A
Inrush time 168
Including emergency lighting No
Frequency 50|60 Hz
Max. number of luminaires per miniature circuit breaker B16 (MCB) 30
Max. number of luminaires per miniature circuit breaker C16 (MCB) 44

Photometrical data

Lumen 9360 lm
Colour temperature 4000 K
Equivalent to TL 2x80W
Colour consistency (SDCM) 6
Luminaire efficacy 195 lm/W
Colour rendering index (CRI) > 80

Light technical data

Beam angle 2 x 30°

Lifespan

Lifetime (L70) 100000 h
Lifetime (L80) 100000 h
On-/Off-cycles 100000
Lifetime (L90) 50000 h

Capabilities

Dimmability On-Off

Certificates and standards

Degree of protection (IP) IP54
Protection class according to IEC 61140 I
Glow wire test 650°C
Risk group (EN 62471) RG0
Type of control gear LED operating device current-controlled
With control gear Yes
Wirethrough Yes
Reflector None
Housing colour White
Optical material PC
Cover material PC
Lens material PC
Length 1437 mm
Width 66 mm
Height/depth 25 mm
Application temperature 25°C
Storage environment -30|70°C
Operating temperature -20|50°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
693720964879294054239CT11.5 x 0.24 x 0.223 m8.01 KG
Trunk-P2 Trunk-Feed in 13-Wire L15-WH


Accessory Trunking P2 - Feed-in connector - 13 Wires

Product Code
552000016600
Trunk-P2 Trunk-Feed in 7-Wire L15-WH


Accessory Trunking P2 - Feed-in connector - 7 Wires

Product Code
552000016800
Trunk-P2 Trunk 7-Wire L15-WH


Accessory Trunking P2 - Trunk 7 - 1.5m

Product Code
552001000000
White
Steel
White RAL9003
Trunk-P2 Trunk 7-Wire L30-WH


Accessory Trunking P2 - Trunk 7 - 3m

Product Code
552001000100
White
Steel
White RAL9003
Trunk-P2 Trunk 7-Wire L45-WH


Accessory Trunking P2 - Trunk 7 - 4.5m

Product Code
552001000200
White
Steel
White RAL9003
Trunk-P2 Trunk 13-Wire L15-WH


Accessory Trunking P2 - Trunk 13 - 1.5m

Product Code
552001000300
White
Steel
White RAL9003
Trunk-P2 Trunk 13-Wire L30-WH


Accessory Trunking P2 - Trunk 13 - 3m

Product Code
552001000400
White
Steel
White RAL9003
Trunk-P2 Trunk 13-Wire L45-WH


Accessory Trunking P2 - Trunk 13 - 4.5m

Product Code
552001000500
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 7-Wire L15-WH


Accessory Trunking P2 - Trunk 7 - 1.5m - End part

Product Code
552001001200
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 7-Wire L30-WH


Accessory Trunking P2 - Trunk 7 - 3m - End part

Product Code
552001001300
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 7-Wire L45-WH


Accessory Trunking P2 - Trunk 7 - 4.5m - End part

Product Code
552001001400
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 13-Wire L15-WH


Accessory Trunking P2 - Trunk 13 - 1.5m - End part

Product Code
552001001500
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 13-Wire L30-WH


Accessory Trunking P2 - Trunk 13 - 3m - End part

Product Code
552001001600
White
Steel
White RAL9003
Trunk-P2 Trunk-Ending 13-Wire L45-WH


Accessory Trunking P2 - Trunk 13 - 4.5m - End part

Product Code
552001001700
White
Steel
White RAL9003
Trunk-P2 L-Coupler WH 13


Accessory Trunking P2 - L-Connector - White

Product Code
552001002800
Trunk-P2 T-Coupler-Left WH 13


Accessory Trunking P2 - T-Connector Left - White

Product Code
552001003200
Trunk-P2 T-Coupler-Right WH 13


Accessory Trunking P2 - T-Connector Right - White

Product Code
552001003400
Trunk-P2 X-Coupler WH 13


Accessory Trunking P2 - X-Connector - White

Product Code
552001003600
Trunk-P2 Blind-Cover L037-WH


Accessory Trunking P2 - Cover - White

Product Code
552001003800
Trunk-P2 Blind-Cover L075-WH


Accessory Trunking P2 - Cover - White

Product Code
552001003900
Trunk-P2 Blind-Cover L15-WH


Accessory Trunking P2 - Cover - White

Product Code
552001004000
Trunk-P2 Blind-Cover L22-WH


Accessory Trunking P2 - Cover - White

Product Code
552001004100
Trunk-P2 Cable-Duct-Side Plate-L15-WH 2pcs


Accessory Trunking P2 - Cable duct side plate - 1.5m

Product Code
552001004900
Trunk-P2 Cable-Duct-Side Plate-L30-WH 2pcs


Accessory Trunking P2 - Cable duct side plate - 3m

Product Code
552001005000
Trunk-P2 Cable-Duct-Clamp 2pcs


Accessory Trunking P2 - Cable duct clamp

Product Code
552001005200
Trunk-P2 End-Cap WH


Accessory Trunking P2 - End cap

Product Code
552001005400
Trunk-P2 Surface-Mounting-Clip 2pcs


Accessory Trunking P2 - Surface mounting clip

Product Code
552001005600
Trunk-P2 Cord+Clip L30 2pcs


Accessory Trunking P2 - Cord + clip - 3m

Product Code
552001005700
Trunk-P2 Chain-Mounting-Clip 2pcs


Accessory Trunking P2 - Chain mounting clip

Product Code
552001005800
Trunk-P2 EM-Module L075-6W-N-EM3-WH


Accessory Trunking P2 - Emergency module - 6W - 3h

Product Code
552001006700
Other
Trunk-P2 230V-Schuko-Socket L037-WH


Accessory Trunking P2 - Schuko socket 230V

Product Code
552001008500
Socket outlet element
Trunk-P2 Feed-in Module 7-Wire-L03-WH


Accessory Trunking P2 - Feed-in connector - 7 Wires

Product Code
552001010900
End-feed
Trunk-P2 Feed-in Module 13-Wire-L03-WH


Accessory Trunking P2 - Feed-in connector - 13 Wires

Product Code
552001011100
End-feed
Trunk-P2 Blind-Module 13 L037-WH


Accessory Trunking P2 - Cover - White

Product Code
552000037300
Trunk-P2 Trunk-IP54-Accessory-Kit-WH


Accessory Trunking P2 - Trunk IP54 Accessory Kit

Product Code
552001012900
Trunk-P2 Mod-IP54-Accessory-Kit


Accessory Trunking P2 - IP54 Accessory Kit

Product Code
552001013000
Trunk-P2 PIR-Sensor Relay-L-A-L037-WH


Accessory Trunking P2 - Sensor accessory

Product Code
552001006900
Trunk-P2 PIR-Sensor Relay-L-R-L037-WH


Accessory Trunking P2 - Sensor accessory

Product Code
552001007700
Trunk-P2 Trunk-Feed in 7-Wire L30-WH


Accessory Trunking P2 - Feed-in connector - 7 Wires

Product Code
552001006300

Downloads

552000032600_ProductSheet_en.pdf
LDT_552000032600.ldt
IM_TRUNK_P2.pdf
Neutral_gb_552000032600.txt OPPLE_gb_552000032600.txt
