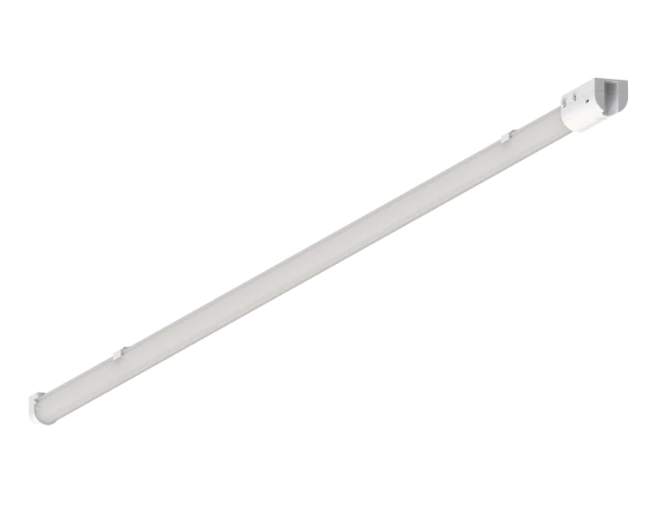

LEDClio-Lin-E L15-22/30W-830/840

Electrical data

Nominal voltage	220|240 V
Voltage type	AC/DC
Max. system power	30 W
Max. number of luminaires per miniature circuit breaker B16 (MCB)	11
Max. number of luminaires per miniature circuit breaker C16 (MCB)	19
Power factor	0.9
Surge protection	1 kV
With sensor	No
Max. inrush current	21 A
Inrush time	335
Max. number of luminaires per miniature circuit breaker C10 (MCB)	11
Max. number of luminaires per miniature circuit breaker C13 (MCB)	15
Including emergency lighting	No
Nominal voltage DC	176|264 V
Frequency	50|60 Hz

Photometrical data

Colour temperature	3000|4000 K
Equivalent to	TL 1x80W
Colour consistency (SDCM)	5
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	145°

Lifespan

Lifetime (L70)	70000 h
Lifetime (L80)	50000 h
On-/Off-cycles	25000

Capabilities

Dimmability	On-Off
With sensor	No
Sensor technology	No sensor
Sensor type	No sensor

Certificates and standards

Protection class according to IEC 61140	II
Degree of protection (IP)	IP20
Glow wire test	650°C

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	10%
Input current	0.137 A
Wirethrough	No

Housing colour	White
Optical material	Polycarbonate
Cover material	Polycarbonate
Lens material	Polycarbonate
Finishing	White RAL9003
Pressure valve	No
Coastal proof	No

Length	1485 mm
Width	35 mm
Height/depth	34 mm

Application temperature	25°C
Storage environment	-20|60°C
Operating temperature	-25|45°C
