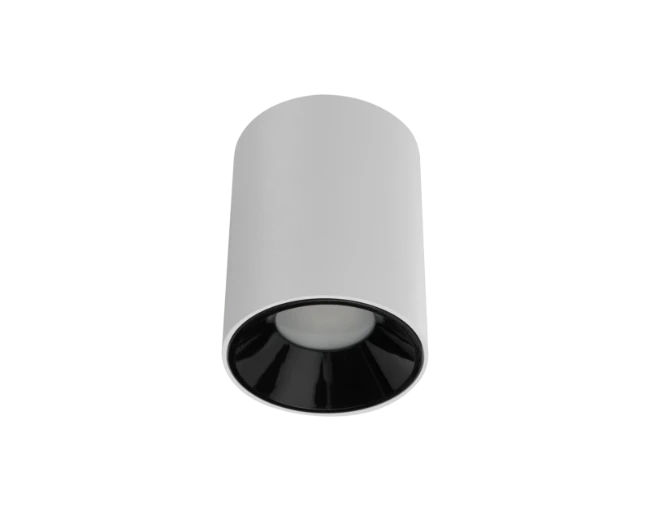

Opbouwspot Selena

LEDSpotRF-Selena-E 5W-930-55D-WH

Product Code
541003590000
  • Stijlvolle en compacte opbouwspot
  • Eenvoudige "twist-and-lock"-montage
  • Volledig metalen behuizing van hoge kwaliteit
  • Standaard CRI 90

Specifications

Electrical data

Nominal voltage 220|240 V
Voltage type AC/DC
Max. inrush current 4.50 A
Inrush time 130.00
Displacement factor (DF) ≥ 0.9
Nominal voltage DC 180|280 V
Frequency 50|60 Hz

Photometrical data

Colour consistency (SDCM) 4.0
CIE Flux Code 88 99 100 100 100

Lifespan

Lifetime (L70) 50000 h
Lifetime (L80) 30000 h
On-/Off-cycles 100000

Certificates and standards

Protection class II
Degree of protection (IP) IP20
Impact strength IK02
Glow wire test 650°C
Risk group (EN 62471) RG1
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 1.0%
Input current 0.0400 A
Housing colour White
Reflector High-gloss
Optical material Polycarbonate
Height/depth 74 mm
Outer diameter 55 mm
Storage environment -25|50°C
Application temperature 25°C
Operating temperature -10|40°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
0694149778717094051190CT10.061 x 0.061 x 0.085 m0.26 KG
